Brake Release Kit (Specification)
- 위탁 개발 의뢰 : Mikipulley Korea

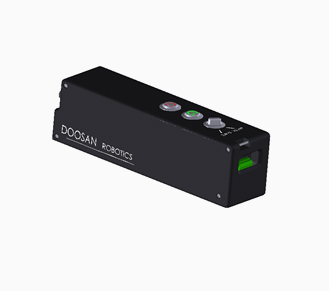

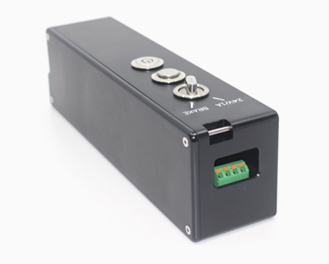

- Mikipulley 자기식 브레이크 전용 해제 장치 (MBR24V7-M1)

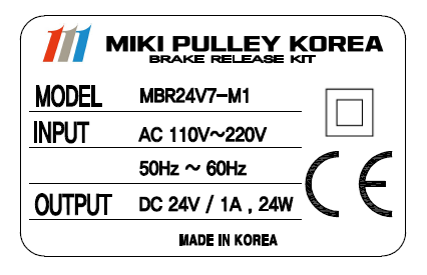

- 국내 특허 (제 10-2001539 호), CE 인증
MBR24V7-M1
항목 | 세부항목 | 사양 |
기본사양 | 계통 입력전원 | AC 100 ~ 240V, 50~60Hz |
베터리 입력전원 | DC 9V Battery x 3EA (직렬) | |
제어방식 | PWM Close loop Voltage Control | |
정격 출력전류(A) | 0.7 | |
최대 출력전휴 (A) | 0.8 | |
BXW Mode | DC 24V/0.2A (연속) | |
BXR-LE Mode | DC 24V/0.7A (0.2sec) -> DC 7V/0.2A (연속) | |
출력사양 | 출력전압 | DC 24V / DC 7V ± 10 [10%] |
보호기능 | 과전류 보호 | Fuse (0.9A) |
표시기능 | Power On LED(Red), Brake Release LED (Green) |
Brake Release Kit (Target Spring-Actuated Brakes)
- BXW Models
Model | Size | Static Friction torque Ts[N.m] |
Coll(at20℃) | Heat resistance class | Max rotation speed [min] |
Rotating part moment of inertla K [kgm] |
Allowable braking energy rate pba [W] |
Total braking energy et[J] |
Armature pull-in time ta [s] |
Armature release time ta [s] |
Mass [kg] | |||
Voltage[V] | Wattag [W] | Current [A] | Resistance [Ω] | |||||||||||
BXW-01-10S | 01 | 0.36 | 24 | 5.0 | 0.208 | 115 | F | 5000 | 0.6 x 10 -6 | - | - | 0.025 | 0.010 | 0.2 |
- BXR-LE Models
Model | Size | Static Friction torque Ts[N.m] |
Coll(at20℃) | Heat resistance class | Max rotation speed [min] |
Rotating part moment of inertla K [kgm] |
Allowable braking energy rate pba [W] |
Total braking energy et[J] |
Armature pull-in time ta [s] |
Armature release time ta [s] |
Mass [kg] | |||||||
Overexcitation output | Nomal excitation output | |||||||||||||||||
Voltage[V] | Wattag [W] | Current [A] | Resistance [Ω] | Voltage[V] | Wattag [W] | Current [A] | Resistance [Ω] | |||||||||||
BXR-015-10LE | 015 | 0.06 | 24 | 16.5 | 0.688 | 35 | 7 | 1.4 | 0.200 | 35 | F | 6000 | 3.35 x 10 | 5 | 1000 | 0.020 | 0.020 | 0.03 |

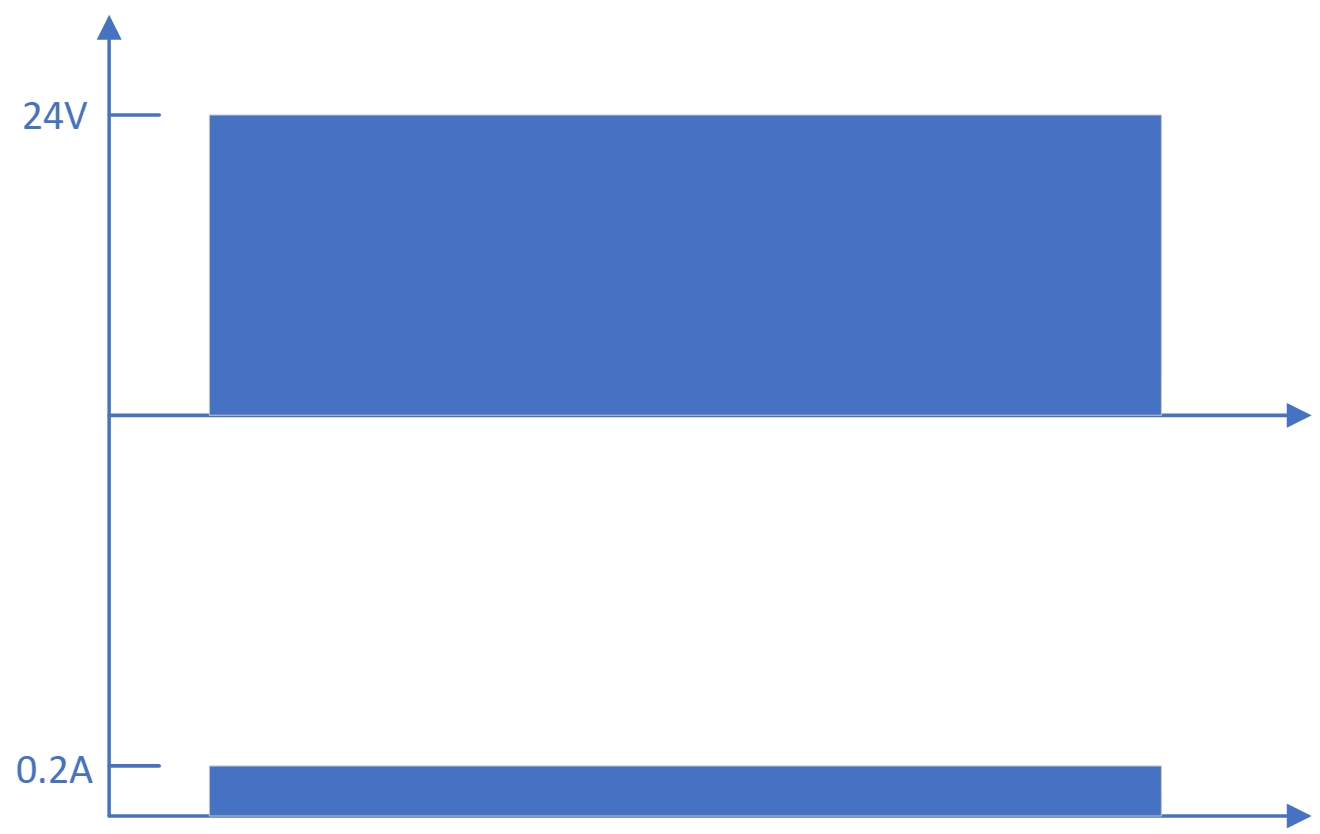

Timing Chart for BXW Models

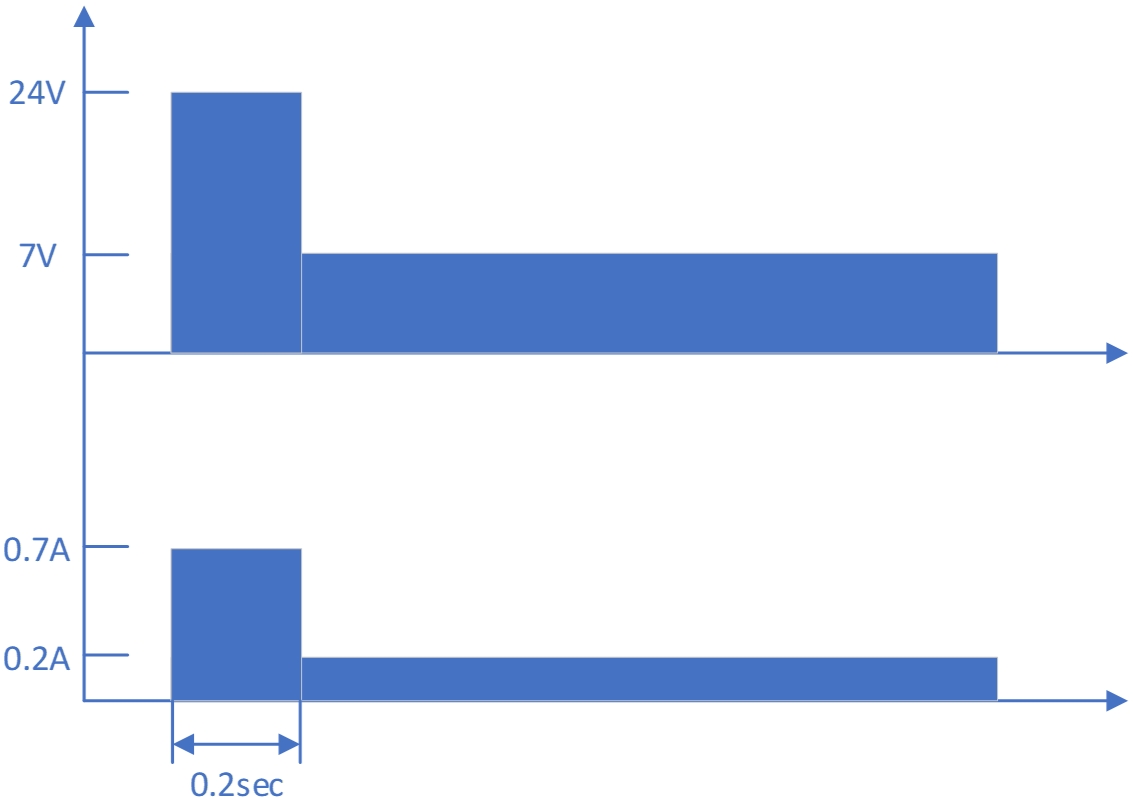

Timing Chart for BXR-LE Models
